Notesaaz is an instrument for live electronic music, and a proposal for a three stage process where the physical controller is used to navigate within a graphical score that on its turn controls the sound generation.

The dynamic score in Notesaaz is created by using two sets of lines. The intersection points of the two sets of lines are continuously being detected, followed and translated into parameters that trigger and control the generated sound. By controlling and interacting with the geometrical arrangement of the lines on the screen, Notesaaz allows complex control over multiple sound parameters using a small number of input parameters.

By showing the dynamic score to the performer and the audience, Notesaaz suggests new possibilities for staging the performer instrument relationship, inviting the audience to engage more in what is played and to anticipate on what happens next.


setup description:

The performer plays a live audiovisual piece with a custom designed instrument, while sitting in the middle of the stage behind a hanging screen, and facing the audience. The score is shown on the screen using back projection, and a stereo sound is played on two front speakers and a sub-woofer. One spot light is needed on the performer, preferably from the top, and with an angle (from either sides). Duration of the performance is 15 minutes (± 2 min).


  • audio: 2 channels balanced 1/4” Jack (TRS)
  • video: VGA or DVI connection, resolution: 1280 x 720 (HD)
  • electricity: 3 x euro plugs

equipment to be provided by the venue:

  • video projection, VGA or DVI cable
  • 2.1 sound system (preferably near flat), 2 balanced jack cables (1/4” TRS)
  • table for laptop and sound card. minimum surface dimension (cm): 60 x 40
  • one stool or small chair for the performer to sit. height : 50 cm

equipment to be provided by artist:

  • laptop: macbook pro 15”
  • sound card: Motu UltraLite mk3

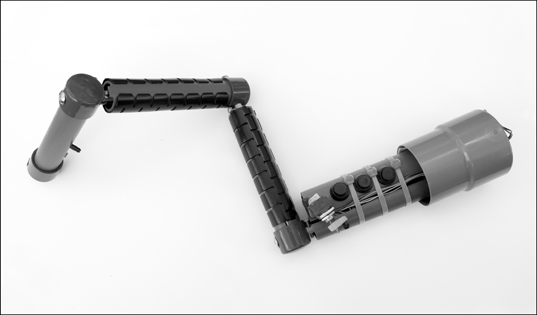

  • controller: Custom designed with usb connection
  • video adaptors: VGA to thunderbolt, DVI to thunderbolt (Mac)
  • projection screen (size can vary according to the space). aspect ratio 16:9
